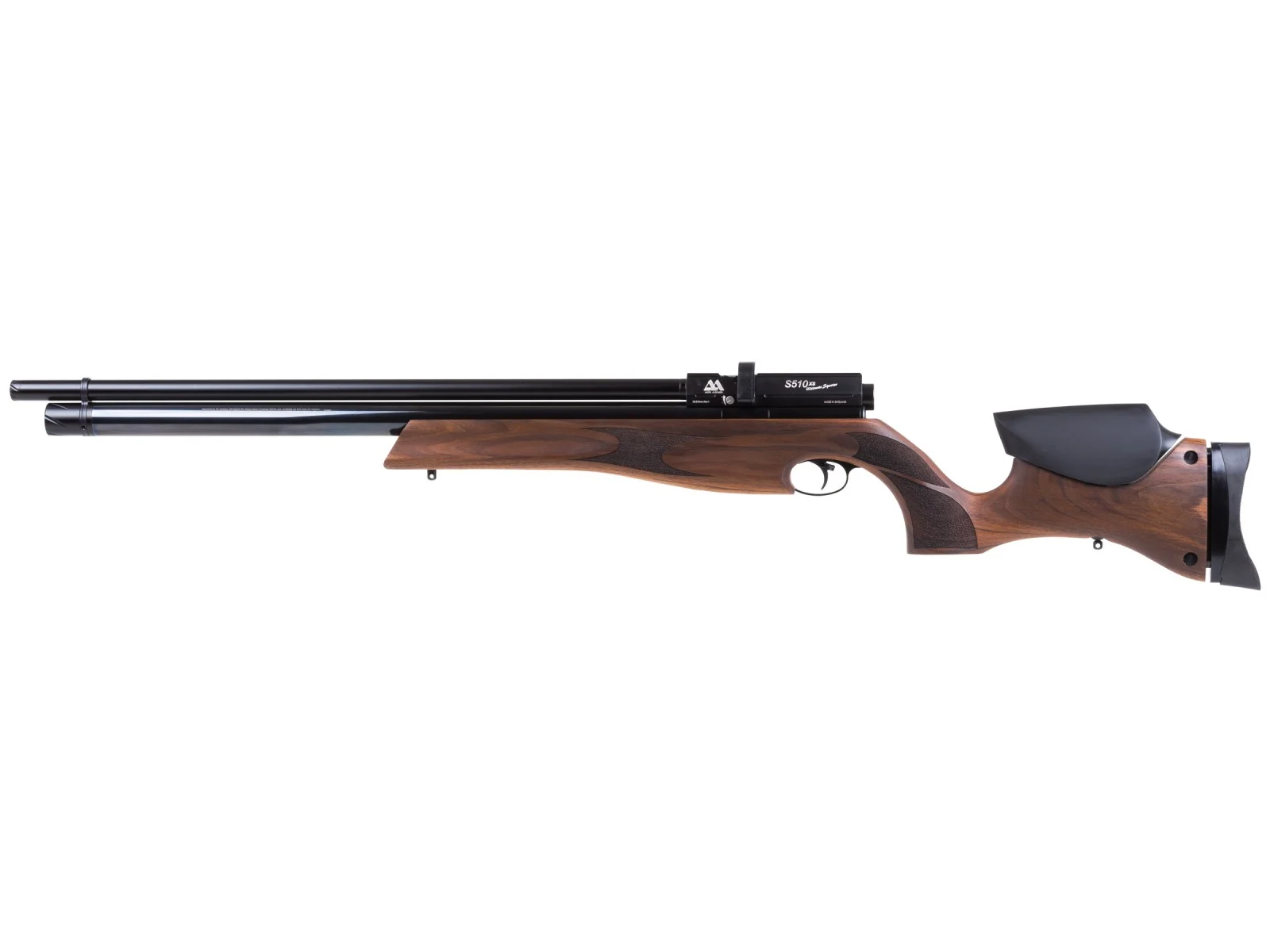

Air Arms S510 XS Ultimate Sporter Xtra FAC Walnut – Regulated High-Power PCP Sporting Rifle

The Air Arms S510 XS Ultimate Sporter Xtra FAC Walnut combines the established S510 side-lever platform with a regulated high-pressure pneumatic system, an extensively adjustable sporting stock and a traditional walnut finish.

Unlike the standard lower-power versions, the Xtra FAC configuration was developed around higher-output regulated performance. Current specifications for the walnut version identify a fully regulated 288 cc air cylinder, 250-bar maximum fill pressure, externally adjustable power control, 10-shot rotary magazine and a fully shrouded Lothar Walther barrel.

The rifle also uses an adjustable two-stage trigger, integrated pressure gauge and 11 mm scope rail. Its walnut stock adds an adjustable cheekpiece, adjustable rubber butt pad, textured gripping surfaces and accessory mounting provisions.

Mechanically, the system is designed to minimize variation.

The regulator controls the pressure supplied to the firing valve as the main cylinder pressure decreases. Consequently, the rifle can maintain more consistent internal operating conditions across a usable shot string.

That consistency is particularly important during formal target work because even relatively small changes in velocity can affect vertical impact at increasing distances.

The Xtra version also incorporates external power adjustment. Air Arms has documented the Xtra FAC system with a Series 7 regulator and valve architecture, while current retailer specifications list multiple power settings. Any adjustment should remain within the rifle’s approved specification and applicable law.

Air Arms S510 XS Ultimate Sporter FAC

The Air Arms S510 XS Ultimate Sporter FAC belongs to the same regulated high-power family.

Its central characteristics include regulated air delivery, smooth side-lever cycling and an adjustable sporter stock.

The Xtra version adds greater emphasis on externally selectable output.

air rifle

An air rifle propels a pellet using compressed gas or mechanically compressed air instead of conventional cartridge propellant.

The S510 XS uses pre-compressed air stored inside its cylinder.

air gun

An air gun is a broader classification covering PCP rifles, spring-piston rifles, pneumatic pistols and CO₂-powered equipment.

This model belongs specifically to the regulated PCP category.

air arms

Air Arms is the British manufacturer behind the S510 family.

The company’s current S510 range includes regulated and unregulated variants, different stock configurations and both standard and FAC power categories.

air rifles

Air rifles can differ substantially in action type, power source, calibre, stock geometry and intended sporting discipline.

The S510 XS Xtra combines magazine-fed operation with regulated pneumatic power.

pellet guns

The phrase pellet guns generally refers to air-powered sporting equipment designed to fire shaped airgun pellets.

Pellet selection should always match the rifle’s calibre.

cal .177 pellets

cal .177 pellets correspond to the 4.5 mm calibre.

The walnut Xtra FAC configuration is currently offered in .177 as well as larger calibres.

break barrel pellet gun

A break barrel pellet gun uses the barrel itself as part of its cocking mechanism.

The S510 does not operate this way.

Its barrel remains fixed while a side lever cycles the breech.

airguns

Airguns include several fundamentally different mechanisms.

The S510 XS Xtra uses stored high-pressure air rather than a mainspring or gas ram.

air pisto

The phrase air pisto generally refers to an air pistol.

The S510 XS Ultimate Sporter Xtra is instead a shoulder-fired rifle platform.

177 caliber

177 caliber is one of the available configurations for this model.

The smaller projectile diameter is commonly associated with relatively flat trajectory characteristics.

177 pellet vs.22 pellet

The 177 pellet vs.22 pellet comparison involves projectile mass, velocity and trajectory.

A .177 pellet is generally lighter and can follow a flatter trajectory.

A .22 pellet is generally heavier and follows a different ballistic path.

air arms s510 ultimate sporter .177 sub 12

The air arms s510 ultimate sporter .177 sub 12 refers to a lower-power configuration.

That version should not be confused with the FAC-rated Xtra model.

The power category affects legal requirements as well as operating characteristics.

what is an air rifle

For what is an air rifle, it is a shoulder-fired sporting platform that propels pellets using compressed air, gas or a mechanically compressed air charge.

The S510 uses stored compressed air.

airgins

The term airgins is commonly a misspelling of airguns.

Within that broad category, the S510 belongs to the regulated PCP class.

.22 air rifle

A .22 air rifle uses 5.5 mm pellets.

The Xtra FAC walnut configuration is available in .22, and current specifications list this calibre alongside .177 and .25.

air arms s510

The air arms s510 platform is based around a smooth side-lever action and 10-shot rotary magazine.

Air Arms also uses fully shrouded Lothar Walther barrels across current S510 configurations.

air riflery

air riflery includes formal target shooting and other lawful sporting disciplines.

A regulated PCP system can be particularly useful when consistency across a long shot string matters.

airgun shooting range near me

For airgun shooting range near me, an authorized club or established range provides an appropriate environment for controlled practice.

A proper range should provide reliable backstops, clear firing procedures and known target distances.

air arm

The phrase air arm is sometimes used informally, although Air Arms is the correct manufacturer name.

The company produces both pneumatic and spring-powered sporting rifles.

target air rifle shooting

target air rifle shooting places emphasis on repeatability.

Stable body position, secure optics, consistent ammunition, trigger control and follow-through all contribute to useful accuracy.

The rifle can provide mechanical consistency, but the shooter must still manage the human variables.

air arms s410

The air arms s410 is an earlier magazine-fed PCP platform within the Air Arms range.

The later S510 architecture introduced the side-lever operating system associated with the current series.

air arms tx200

The air arms tx200 is mechanically very different.

It uses a spring-powered underlever action rather than a pre-charged pneumatic cylinder.

177 air rifle

A 177 air rifle uses 4.5 mm pellets.

Within target-oriented applications, this calibre is often selected because of its relatively flat trajectory.

how do air guns work

For how do air guns work, the answer depends on the power system.

In this rifle, high-pressure air is stored inside the cylinder.

The regulator meters that pressure.

When the action fires, a controlled quantity of compressed air passes through the valve and propels the pellet through the barrel.

Air rifle cleaning kit

An Air rifle cleaning kit suitable for a precision PCP should contain equipment designed for airgun barrels.

A soft pull-through, appropriate patches and suitable external cleaning materials are generally more appropriate than aggressive bore-cleaning equipment.

The muzzle crown should always be protected during maintenance.

177 caliber vs 22

The 177 caliber vs 22 choice depends on the rifle configuration and lawful sporting purpose.

The smaller calibre generally provides the flatter trajectory.

The larger calibre normally uses a heavier pellet.

Neither choice eliminates the need for careful pellet testing.

air guns for home defense

The phrase air guns for home defense does not describe the intended role of this rifle.

The S510 XS Xtra should be treated as sporting equipment and used only for lawful target or other permitted sporting purposes.

air compressor rifle

The phrase air compressor rifle is sometimes used informally when discussing PCP systems.

The rifle itself does not contain an ordinary compressor.

Instead, its cylinder must be filled using properly rated high-pressure equipment.

pcp hand pump

A pcp hand pump can provide a manual source of compressed air when it is specifically designed for the required PCP pressure.

The Xtra system uses a high-pressure reservoir, so all pumps, hoses and connectors must be correctly rated.

air rifle calibers

Common air rifle calibers include .177, .22 and .25.

The S510 XS Ultimate Sporter Xtra FAC Walnut is currently listed in all three.

Each calibre produces different velocity, trajectory and air-consumption characteristics.

prosport air arms

The prosport air arms reference concerns the Air Arms Pro Sport.

That rifle uses a self-contained spring mechanism rather than the S510’s PCP system.

what is break barrel air rifle

For what is break barrel air rifle, it is a spring-powered or gas-ram rifle in which the barrel pivots downward for cocking.

The S510 has a fixed barrel and side-lever pneumatic action.

Air Arms S510 XS Ultimate Sporter FAC Walnut Stock

The Air Arms S510 XS Ultimate Sporter FAC Walnut Stock combines the regulated S510 action with an adjustable hardwood stock.

The Xtra configuration follows the same broad ergonomic concept while adding externally selectable power characteristics.

Air Arms S510 XS Ultimate Sporter

The Air Arms S510 XS Ultimate Sporter emphasizes adjustability and regulated consistency.

The stock allows the shooter to refine cheek position and shoulder contact.

That is particularly useful when mounting a telescopic sight at different heights.

Air Arms S510 FAC

The Air Arms S510 FAC refers to higher-power S510 configurations that fall into the relevant firearm-certificate category in the UK.

Air Arms currently distinguishes these from its sub-12 ft/lb versions.

Local requirements should always be confirmed before possession or use.

Air Arms S510 XS FAC PCP Air Rifle

The Air Arms S510 XS FAC PCP Air Rifle combines an internal regulator with higher-power pneumatic operation.

The regulator helps stabilize pressure before each discharge.

Air Arms air rifle

An Air Arms air rifle may use either pneumatic or spring-powered technology depending on model.

The S510 XS Xtra represents the company’s regulated, magazine-fed PCP architecture.

Fully Regulated 288 cc Air System

The Xtra walnut configuration is currently specified with a fully regulated 288 cc air cylinder.

Why the Larger Reservoir Matters

Reservoir volume contributes to available air capacity.

However, usable shot count still depends on calibre, output setting and operating conditions.

250-Bar Fill Pressure

Current specifications identify a maximum fill pressure of 250 bar, approximately 3,626 psi.

Why This Is Important

High-pressure air stores substantial energy.

The rifle should never be overfilled.

Only correctly rated filling equipment should be connected.

Series 7 Regulator and Valve System

Air Arms has described the XS Xtra FAC architecture as using its Series 7 regulator and valve system.

Why the Regulator Matters

It isolates the firing system from the full reservoir pressure.

Consequently, each shot can begin from more consistent pressure conditions.

Externally Adjustable Power System

The Xtra configuration includes an external power control.

Why It Exists

Different approved settings can alter the rifle’s output without requiring routine internal alteration.

Important

The control should only be used within manufacturer specifications, competition rules and applicable law.

10-Shot Rotary Magazine

The system uses a 10-shot magazine and current listings include two magazines.

Why the Magazine Matters

It allows repeated shots to be cycled through the side-lever action without manually placing every pellet into the breech.

Smooth Side-Lever Action

The side lever is one of the characteristic features of the S510 platform.

Why It Matters

A smooth cycling motion can reduce unnecessary movement between target shots.

Air Arms specifically highlights the side lever as a core S510 feature.

Fully Shrouded Lothar Walther Barrel

The Xtra walnut version uses a fully shrouded Lothar Walther barrel.

Why Barrel Quality Matters

The barrel provides the pellet’s final guidance before exit.

Uniform internal dimensions support repeatable pellet alignment and stabilization.

Adjustable Two-Stage Trigger

The trigger can be adjusted within its intended parameters.

Why Two Stages Help

The first stage allows preparation.

The second stage provides the final release point.

Why Predictability Matters

A consistent break reduces the likelihood of disturbing aim immediately before the shot.

Ambidextrous Walnut Stock

The stock is made from walnut and is configured for ambidextrous use.

Why Walnut Matters

Walnut combines natural grain, traditional appearance and structural rigidity.

Why Every Stock Is Different

Natural wood varies in grain pattern and tone.

Adjustable Cheekpiece

The cheekpiece can be positioned to improve eye alignment with the optic.

Why

A consistent eye position supports a repeatable sight picture.

Adjustable Butt Pad

The rear pad can be adjusted to fit the shoulder more naturally.

Why

A stable shoulder position improves overall rifle alignment.

Checkered Grip and Fore-End

Textured gripping surfaces are incorporated into the walnut stock.

Why

They provide additional tactile control without requiring excessive grip pressure.

Accessory Rail

The stock includes an accessory rail beneath the fore-end.

Why

It allows compatible sporting accessories to be positioned without modifying the stock.

Built-In Pressure Gauge

The integrated gauge allows cylinder pressure to be monitored.

Why

Knowing remaining pressure helps the shooter avoid operating outside the preferred pressure range.

Shot Count

Current model-specific listings give approximately 60 shots in .177, 55 in .22 and 40 in .25 for this Xtra configuration.

Air Arms’ broader current guidance gives FAC S510 figures of roughly 40–60 shots in .177, 35–50 in .22 and 30–40 in .25, noting that real results vary with configuration and conditions.

Why Shot Count Varies

Shot count depends on several variables.

Calibre changes air consumption.

Higher output requires more air.

Temperature affects pressure.

Pellet choice may change the chosen operating setting.

Therefore, quoted figures should be treated as typical values rather than guarantees.

Why the Xtra Version Is Different

The Xtra model combines regulation with externally selectable output and a larger regulated air system.

Why This Matters

It gives the platform a different operating character from a fixed-output sporting PCP.

Why Regulated Pressure Supports Precision

Stable velocity makes trajectory more predictable.

Why

A slower pellet remains in flight longer and experiences more gravitational drop before reaching the target.

Reducing velocity variation therefore helps reduce one cause of vertical dispersion.

Why Pellet Testing Still Matters

A regulator cannot compensate for poorly matched ammunition.

Different pellet dimensions and weights may group differently.

Better Practice

Evaluate ammunition under controlled range conditions.

Why Scope Mounting Matters

The rifle uses an 11 mm dovetail.

The optic should be installed securely and positioned for comfortable eye relief.

Why

Movement between the rifle and scope can shift zero.

Why Stock Adjustment Matters

The adjustable cheekpiece and butt pad allow the shooter to refine fit.

Why

A consistent rifle position helps produce a consistent eye line and trigger reach.

Why PCP Recoil Is Relatively Mild

There is no large spring piston accelerating inside the action.

Why This Helps

The sight picture is generally easier to maintain during discharge.

Why Technique Still Matters

Poor trigger control, cant or unstable positioning can still disturb the shot.

Why High-Pressure Safety Matters

A 250-bar reservoir should be treated as a high-pressure system.

Therefore

Never use damaged hoses.

Never improvise connectors.

Never exceed the stated pressure.

Why Dry Air Matters

Moisture should be minimized during filling.

Why

Water inside the pneumatic system can contribute to internal corrosion.

Why Professional Servicing Matters

The regulator, valve, seals and pressure system contain precision high-pressure components.

Why

Incorrect disassembly can affect safety and consistency.

Why Routine Cleaning Matters

Exterior metal should be wiped after use.

The walnut stock should be kept dry.

The barrel should be cleaned conservatively.

Why

Good maintenance protects both appearance and mechanical consistency.

Where This Rifle Fits Best

Appropriate use environments include authorized ranges and other lawful sporting settings with suitable backstops.

Why

Controlled environments provide safer firing procedures and predictable target placement.

When This Configuration Makes Sense

The configuration is relevant when the shooter values regulated pneumatic consistency, adjustable stock ergonomics and a magazine-fed side-lever system.

How Good Is the S510 XS Xtra Platform?

Its technical strength comes from combining several systems rather than relying on one feature.

The regulator manages pressure.

The barrel guides the pellet.

The trigger controls release.

The stock supports fit.

The side lever and magazine manage the loading cycle.

Why Precision Depends on the Shooter Too

Even a consistent mechanical platform cannot replace sound technique.

The shooter still controls body position, sight alignment, breathing, trigger release and follow-through.

Important Ownership Information

This is an FAC-rated high-power platform.

The exact licensing and possession requirements depend on jurisdiction.

The rifle should remain within its approved specification and be used only where lawful.

Internal changes intended to increase output beyond authorized limits should not be attempted.

Final Section 1 Assessment

The Air Arms S510 XS Ultimate Sporter Xtra FAC Walnut is a regulated, magazine-fed PCP platform combining Air Arms’ established S510 side-lever architecture with a larger regulated air system, external power control and extensively adjustable walnut stock.

Model-specific specifications identify a 288 cc regulated reservoir, 250-bar maximum fill pressure, 10-shot rotary magazine, two-stage adjustable trigger, fully shrouded Lothar Walther barrel, pressure gauge, adjustable cheekpiece, adjustable butt pad and accessory rail.

Air Arms has also documented the Xtra FAC system around its Series 7 regulator and valve architecture, giving the configuration a distinct role within the wider S510 family.

The regulator is central to its precision.

As reservoir pressure declines, the regulated system helps deliver a more stable working pressure to the firing valve.

That supports more consistent pellet velocity and therefore a more predictable trajectory.

The walnut stock contributes another layer of control.

Its adjustable cheekpiece helps establish a repeatable eye position behind the optic, while the adjustable butt pad allows shoulder contact to be refined.

The textured grip and fore-end provide tactile control, and the accessory rail expands the stock’s practical adjustment options.

Meanwhile, the smooth side lever and 10-shot magazine provide a straightforward loading cycle.

Unlike a single-shot competition rifle, the S510 allows multiple pellets to be carried in the magazine while maintaining the fixed-barrel PCP architecture.

The Xtra’s external power adjustment should be regarded as part of the factory-designed operating system rather than an invitation to exceed legal or manufacturer limits.

Because this is an FAC configuration, applicable licensing and power rules are especially important.

For lawful sporting and controlled target use, the S510 XS Ultimate Sporter Xtra FAC Walnut provides a technically sophisticated combination of regulated pressure management, adjustable ergonomics, smooth side-lever operation and precision barrel engineering.

Its strongest characteristic is repeatability: the air system, action, stock and trigger are designed to reduce mechanical variables so that the shooter can focus on the remaining variables of position, sight alignment, environmental conditions and technique.

Handling, Regulated Performance, Ergonomics, Air Management, Accuracy, Maintenance and Long-Term Ownership

Overall Handling Character

The Air Arms S510 XS Ultimate Sporter Xtra FAC Walnut combines a relatively refined pneumatic firing cycle with a highly adjustable stock and a smooth multi-shot action.

That combination gives the rifle a different character from a spring-powered platform.

There is no heavy piston moving inside the action during discharge, so the firing cycle is comparatively calm.

This low-recoil behavior can make it easier to maintain the sight picture, observe target response and concentrate on trigger control.

However, low recoil does not remove the need for good technique.

The shooter must still manage position, breathing, grip pressure, head placement and follow-through.

The rifle performs most consistently when those variables remain stable.

Why Balance Matters

The rifle contains several components that influence balance.

These include the air cylinder, barrel, action, scope and walnut stock.

Why This Matters

A rifle that feels excessively front-heavy can fatigue the support arm.

A rifle that feels too rear-heavy can feel unstable.

Why Stock Adjustment Helps

The adjustable stock allows the shooter to refine body position around the rifle.

This can improve the subjective balance even when the rifle’s actual weight does not change.

Cheekpiece Adjustment

The cheekpiece should support a natural head position.

Why

The eye should line up with the center of the optic without excessive neck movement.

Why Repetition Matters

If the head sits differently from shot to shot, the sight picture can change.

Why This Becomes More Important With Magnification

Higher magnification makes small positioning errors more noticeable.

Butt-Pad Adjustment

The butt pad should sit consistently against the shoulder.

Why

Shoulder position influences:

Head alignment

Trigger reach

Rifle angle

Overall stability

Why Different Positions Feel Different

A setting that feels ideal from a bench may feel different when standing or kneeling.

Grip Position

The firing hand should remain relaxed.

Why

Excess tension can introduce unwanted movement.

Trigger-Finger Placement

The trigger finger should meet the blade naturally.

Why

A stretched or twisted position can cause sideways pressure.

Two-Stage Trigger Use

The first stage allows the shooter to prepare for the shot.

The second stage provides the final release point.

Why This Helps

The shooter can increase pressure gradually rather than snatching the trigger.

Why Trigger Consistency Matters

A predictable release makes it easier to repeat good technique.

Why Adjustment Should Be Conservative

Trigger systems are safety-critical.

Adjustments should remain within manufacturer guidance.

Side-Lever Operation

The side lever allows the action to be cycled smoothly.

Why

The shooter does not need to break the barrel or operate a heavy spring mechanism.

Why Smooth Cycling Helps

The rifle can remain close to the established shooting position.

Why the Lever Should Not Be Forced

Unexpected resistance can indicate dirt, wear or another mechanical issue.

Magazine Operation

The magazine carries multiple pellets.

Why This Is Useful

The shooter can cycle the action without manually inserting every pellet.

Why Magazine Condition Matters

A damaged or dirty magazine can produce feed problems.

Basic Magazine Care

Keep it clean.

Inspect for damage.

Avoid forcing pellets.

Why Pellet Orientation Matters

Pellets should sit correctly in the magazine.

Why

Poor seating can affect loading.

Regulated Air System

The regulator is one of the most important components in the rifle.

Why

The main reservoir contains air at a much higher pressure than the firing valve needs.

The regulator reduces that pressure to a controlled working level.

Why This Improves Consistency

The firing system receives a more uniform pressure supply.

Why Uniform Pressure Matters

It can support more stable velocity.

Why Stable Velocity Matters

A pellet travelling at a predictable speed follows a more predictable trajectory.

Why This Becomes Important at Distance

Small velocity differences can create vertical impact changes.

Why Regulation Does Not Guarantee Perfect Consistency

Other variables still matter.

These include:

Pellet weight

Temperature

Valve condition

Regulator condition

Shooter technique

Pressure Monitoring

The built-in gauge helps the shooter monitor reservoir pressure.

Why

It provides a quick indication of the air remaining.

Why the Gauge Should Not Be Treated as a Precision Laboratory Instrument

It is primarily a practical reference.

Why Starting Pressure Matters

Beginning each session from a known pressure makes shot count easier to track.

Why Overfilling Should Be Avoided

The rifle should never be filled above its stated pressure limit.

Why

Higher pressure is not automatically better.

It can place unnecessary stress on components and may prevent the system from operating as intended.

Filling Equipment

Only properly rated equipment should be used.

Suitable Options May Include

Purpose-built PCP hand pump

Approved high-pressure cylinder

Suitable PCP compressor

Why Ordinary Workshop Compressors Are Not Appropriate

They do not normally provide the required pressure or air quality.

Why Dry Air Matters

Moisture inside the air system is undesirable.

Why

It can contribute to internal corrosion.

Filling Slowly

A controlled fill is preferable to a rapid one.

Why

Air heats as it is compressed.

Why Heat Matters

The indicated pressure can change as the system cools.

Hose Inspection

High-pressure hoses should be inspected regularly.

Look For

Cuts

Fraying

Bulges

Damaged fittings

Why Damaged Hoses Must Be Replaced

A failed high-pressure hose can be dangerous.

Connector Condition

Fill fittings should remain clean.

Why

Debris can damage seals or interfere with proper connection.

Why Improvised Adapters Should Not Be Used

Incorrect fittings can fail under pressure.

Shot Count Management

The useful number of shots per fill depends on several variables.

These Include

Calibre

Output setting

Temperature

Starting pressure

Mechanical condition

Why Tracking Shot Count Helps

A sudden change can indicate a problem.

Why One Session Is Not Enough Evidence

Environmental conditions can affect results.

Repeated patterns are more useful.

External Power Control

The rifle includes factory-designed external power adjustment.

Why This Requires Care

Changes should remain within legal and manufacturer limits.

Why Higher Output Changes Air Use

More energy generally requires more compressed air.

Practical Result

Shot count can decrease as output increases.

Why Output Changes Can Affect Trajectory

Different velocities change pellet flight characteristics.

Why Zero Should Be Rechecked After Any Approved Setting Change

The point of impact may move.

Why Illegal or Unapproved Modification Should Be Avoided

It can affect:

Safety

Legal classification

Reliability

Accuracy

Barrel Performance

The precision barrel is a major component of the rifle’s accuracy potential.

Why

The pellet receives its final guidance through the bore.

Why Barrel Condition Matters

Contamination or damage can affect grouping.

Crown Condition

The muzzle crown should remain protected.

Why

The pellet exits at this point.

Why Small Damage Can Matter

Uneven air release can affect pellet departure.

Barrel Shroud

The shroud encloses the barrel.

Why

It helps manage discharge noise and protects part of the barrel assembly.

Why the Shroud Should Remain Secure

Movement can affect mechanical consistency.

Barrel Cleaning

Cleaning should remain conservative.

Why

Aggressive cleaning can damage the bore or crown.

When Cleaning May Be Appropriate

Accuracy changes unexpectedly

Contamination enters the bore

A different pellet behaves inconsistently

A long service interval has passed

Why a Soft Pull-Through Is Often Preferred

It reduces the risk of damaging the crown.

Pellet Selection

Different pellets can produce different levels of accuracy.

Why

They vary in:

Weight

Head size

Skirt design

Lead consistency

Why Controlled Testing Helps

The shooter should change one variable at a time.

Why

Otherwise, the cause of any improvement or deterioration becomes unclear.

Group Testing

Several groups provide more useful information than a single shot.

Why

Individual pellets can be affected by technique or wind.

Pellet Batch Variation

Even the same pellet model can vary slightly between batches.

Why

Manufacturing tolerances are never absolutely identical.

Why Batch Testing Can Help

A new supply can be checked before important target sessions.

Pellet Storage

Keep pellets clean and protected.

Why

Soft lead can deform easily.

Scope Setup

The scope should be mounted securely.

Why

Movement between optic and rifle changes zero.

Eye Relief

The shooter should be able to establish a natural head position.

Why

A forced position creates tension.

Scope Height

Scope height affects both ergonomics and trajectory reference.

Why

The optic sits above the bore line.

Why a Comfortable Height Is Important

The shooter should not need to lift or lower the head unnaturally.

Parallax

Parallax can create apparent reticle movement when eye position changes.

Why

The image and reticle may not be on the same focal plane.

Why Cheekpiece Adjustment Helps

A repeatable head position reduces this variable.

Zeroing

The rifle should be zeroed under controlled conditions.

Why

Zero establishes the reference point for all other distances.

Why Several Groups Should Be Used

One shot is not enough to establish a true group center.

Why Bench Zeroing Is Useful

A stable rest reduces some human movement.

Why Field Verification Is Still Needed

Bench performance does not fully reflect normal shooting positions.

Rifle Cant

Tilting the rifle can shift point of impact.

Why

Gravity continues acting vertically while the scope and barrel rotate.

Why Repeatable Orientation Matters

Consistent rifle angle removes another variable.

Standing Position

Standing is usually the least stable position.

Why

The rifle relies almost entirely on the shooter’s balance.

Why Adjustable Fit Helps

Better stock alignment can reduce unnecessary tension.

Kneeling Position

Kneeling provides additional skeletal support.

Why

The shooter can use the body more efficiently.

Supported Shooting

A suitable rest can help isolate mechanical performance.

Why

It reduces movement.

Why the Rifle Should Not Be Clamped Excessively

A natural support arrangement is generally more representative of normal use.

Breathing Control

Breathing moves the upper body.

Why

The shoulders and chest shift naturally.

Practical Approach

Use a natural pause.

Why Excessive Breath Holding Is Poor Technique

It increases tension.

Trigger Release

The trigger should be pressed smoothly.

Why

Sudden movement can disturb the sight picture.

Follow-Through

Maintain position after firing.

Why

It encourages consistent technique and allows the shooter to observe sight behavior.

Low-Recoil Characteristics

The rifle has much less recoil than a spring-powered design.

Why

There is no heavy piston accelerating inside the action.

Why This Helps

The scope remains easier to observe during discharge.

Why Technique Still Matters

The rifle can still be moved by the shooter before the pellet exits.

Wind

Wind can move the pellet laterally.

Why

Pellets remain exposed to moving air throughout flight.

Why Accurate Equipment Cannot Remove Wind Drift

The environment remains an external variable.

Range Estimation

Distance affects trajectory.

Why

Pellets slow and drop as they travel.

Why Actual Range Data Is Better Than Generic Charts

Every rifle, pellet and optic combination differs.

Useful Information to Record

Zero distance

Pellet type

Scope height

Approved power setting

Observed trajectory

Temperature

Compressed air responds to temperature.

Why

Pressure changes as air warms or cools.

Why This Matters

Gauge readings can differ between environments.

Why Acclimatization Helps

Allowing equipment to stabilize can reduce unexpected changes.

Rain

Wet conditions require additional care.

Why

Moisture can affect:

Walnut

Metalwork

Optics

Gripping surfaces

After Wet Use

Dry the rifle carefully.

Why the Walnut Stock Needs Attention

Natural wood should not remain damp.

Walnut Stock Care

The stock should be kept clean and dry.

Why

Prolonged moisture can affect the finish and wood.

Why Harsh Chemicals Should Be Avoided

They can damage the finish.

Why Natural Grain Varies

Each walnut stock has unique color and figure.

Why Small Cosmetic Marks Are Different From Structural Damage

Surface wear may not affect function.

Cracks around mounting areas deserve more attention.

Stock Hardware

Adjustment screws and action mounting hardware should remain secure.

Why

Movement can alter fit and point of impact.

Why Over-Tightening Is Not Better

Excessive force can damage threads or wood.

Accessory Rail

The fore-end rail allows compatible accessories to be mounted.

Why

It provides flexibility without modifying the stock.

Why Accessory Weight Matters

Any added mass changes balance.

Why Balance Should Be Reassessed

A heavy front-mounted accessory can alter handling significantly.

Pre-Session Inspection

Before use, check:

Air pressure

Scope mounts

Stock settings

Trigger operation

Magazine condition

Why

Small problems are easier to correct before shooting begins.

Post-Session Care

After use:

Wipe metal surfaces

Dry the stock

Check the scope

Inspect the magazine

Store securely

Why

Routine care helps preserve both function and appearance.

Pressure Retention

The rifle should retain pressure normally.

Why

Unexpected loss can indicate a seal or valve issue.

Signs Worth Investigating

Gauge drop

Audible leakage

Reduced shot count

Why Temperature Must Be Considered

Pressure can change naturally with temperature.

Why Persistent Loss Matters More

Repeated pressure decline suggests a mechanical issue.

Seal Condition

The pneumatic system depends on seals.

Why

They keep the high-pressure system airtight.

Why Seals Age

Pressure cycles

Heat

Time

Wear

Possible Symptoms

Slow leakage

Reduced efficiency

Inconsistent operation

Why Seal Replacement Should Be Correct

Incorrect materials or dimensions can cause failure.

Regulator Servicing

The regulator may eventually need professional service.

Why

It contains precision high-pressure components.

Signs That May Require Attention

Unusual velocity spread

Reduced efficiency

Inconsistent shot behavior

Why Diagnosis Should Be Methodical

Pellets, temperature and fill pressure should be checked first.

Valve Maintenance

The valve controls the release of air.

Why

Its behavior directly influences velocity and air use.

Why Internal Valve Work Should Be Professional

It can affect both pressure safety and legal output.

Trigger Maintenance

The trigger should remain clean and predictable.

Why

A changing break can reduce confidence and may indicate a problem.

When to Stop Using the Rifle

If the trigger behaves unexpectedly, it should be inspected before further use.

Side-Lever Maintenance

The lever should remain smooth.

Why

New resistance may indicate wear or contamination.

Why Force Should Be Avoided

Forcing the action can damage internal parts.

Magazine Troubleshooting

If feeding becomes inconsistent, begin with the magazine.

Check

Pellet seating

Magazine cleanliness

Visible damage

Why

A feed problem does not always indicate a breech or action fault.

Diagnosing Poor Accuracy

Start with the simplest causes.

Check First

Pellet condition

Wind

Scope security

Air pressure

Shooter technique

Then Consider

Barrel condition

Regulator behavior

Mechanical service

Why This Order Helps

It avoids unnecessary disassembly.

Vertical Grouping

Possible causes include:

Velocity variation

Range error

Breathing inconsistency

Scope movement

Horizontal Grouping

Possible causes include:

Wind

Cant

Trigger movement

Body alignment

Why Repeated Groups Matter

A single poor group does not prove a mechanical fault.

Long-Term Mechanical Care

Routine ownership should remain conservative.

Main Tasks

Keep the rifle dry.

Protect the stock.

Check scope mounts.

Inspect pressure behavior.

Maintain filling equipment.

Why Internal Service Should Be Professional

High-pressure pneumatic systems should not be casually disassembled.

Professional Service May Include

Regulator inspection

Seal replacement

Valve inspection

Gauge inspection

Trigger service

Why Service Records Help

They create a useful maintenance history.

Storage

Store the rifle unloaded, secure and dry.

Why

Unauthorized access should be prevented.

Why Local Law Matters

Storage requirements differ by jurisdiction.

Long-Term Pressure Storage

Follow manufacturer guidance.

Why

The air system is designed to operate within controlled pressure conditions.

Transport

Use a protective case.

Why

The scope, stock, shroud and air cylinder can all be damaged by impact.

Why the Rifle Should Be Secured Inside the Case

Movement during travel can alter zero or stock settings.

After Transport

Check:

Scope mounts

Stock adjustments

Pressure

Trigger function

Why

A short inspection can prevent surprises.

Long-Term Ownership Costs

PCP ownership involves more than pellets.

Possible Costs Include

Air filling

Cylinder testing

Compressor maintenance

Seals

Professional servicing

Scope maintenance

Why Planning for Air Supply Matters

The rifle depends entirely on high-pressure air.

Hand Pump Advantages

Portable

Independent of refill stations

Hand Pump Disadvantages

Physical effort

Slow filling

Cylinder Advantages

Fast and convenient

Cylinder Disadvantages

Requires periodic refill and testing

Compressor Advantages

Independent air supply

Compressor Disadvantages

Higher initial cost and maintenance

Why Air Quality Is More Important Than Convenience

Clean, dry air supports long-term internal condition.

Legal Compliance

The rifle is an FAC-rated configuration.

Why

Its output may place it in a regulated legal category.

Why Exact Requirements Must Be Checked Locally

Laws vary by jurisdiction.

Why Internal Power Modification Should Be Avoided

Unapproved changes can affect:

Safety

Reliability

Accuracy

Legal status

Suitable Use Environments

Appropriate use includes:

Authorized ranges

Formal target venues

Other lawful sporting locations with suitable backstops

Why a Safe Backstop Is Essential

Targets alone may not stop a pellet.

Why Hard Surfaces Can Be Dangerous

They can create ricochets.

Training Value

The rifle’s low recoil and regulated action make technique easier to analyze.

Why

Mechanical disturbance is relatively low.

Useful Practice Areas

Trigger control

Position building

Breathing

Follow-through

Wind reading

Why Structured Practice Helps

It isolates specific weaknesses.

Why Simply Firing More Shots Is Not Enough

Repetition without analysis can reinforce poor habits.

Developing a Baseline

A stable setup is valuable.

Record

Stock settings

Scope position

Zero

Pellet type

Approved power setting

Why

The rifle can be returned to a known configuration after transport or service.

Why Constant Adjustment Can Be Counterproductive

Changing several things at once makes results difficult to interpret.

Better Approach

Change one variable.

Test.

Record the result.

Long-Term Precision

The rifle can remain accurate for many years if its core systems remain stable.

Important Areas

Barrel

Regulator

Trigger

Scope

Stock hardware

Why Shooter Technique Often Becomes the Largest Variable

Once the rifle is functioning correctly, human inconsistency may exceed mechanical variation.

Why This Is Useful

It makes the platform suitable for disciplined skill development.

Practical Ownership Philosophy

Treat the rifle as a complete system.

Why

Barrel quality alone does not determine performance.

The regulator, valve, pellets, stock, optic and shooter all interact.

Why Stability Is Usually Better Than Constant Tuning

A known setup allows meaningful comparison.

Final Section 2 Assessment

The Air Arms S510 XS Ultimate Sporter Xtra FAC Walnut is a technically refined regulated PCP whose main strength lies in the way its air system, action, stock and barrel work together.

The regulated pneumatic system helps maintain a more consistent working pressure as the main reservoir empties.

The multi-shot magazine and side-lever action allow repeated shots to be cycled with minimal disturbance.

The precision barrel provides the mechanical foundation for accurate pellet guidance.

The adjustable trigger helps the shooter release each shot in a controlled way.

The walnut stock adds both traditional appearance and practical ergonomic adjustment.

The cheekpiece allows eye position to be refined.

The butt pad helps establish repeatable shoulder contact.

The accessory rail allows compatible equipment to be fitted without modifying the stock.

However, the rifle’s sophisticated design does not eliminate the need for careful ownership.

High-pressure filling equipment must be correctly rated.

The maximum fill pressure should be respected.

Hoses and fittings should be inspected.

Clean, dry air should be used whenever possible.

The rifle should never be altered beyond approved legal and manufacturer limits.

Routine maintenance should remain methodical.

Keep the walnut dry.

Protect the muzzle crown.

Clean the barrel only when needed.

Check scope mounts.

Monitor pressure retention.

Inspect magazines.

Watch for changes in trigger or side-lever behavior.

If the rifle develops abnormal pressure loss, regulator inconsistency or trigger problems, professional servicing is the appropriate response.

For lawful target and sporting use, the platform offers a combination of low recoil, regulated consistency, smooth cycling and adjustable ergonomics.

Its greatest practical advantage is repeatability.

When the same pellet, pressure routine, stock configuration, optic setup and shooting technique are used consistently, the rifle provides a stable mechanical platform from which the shooter can focus on position, wind, distance and trigger control.
